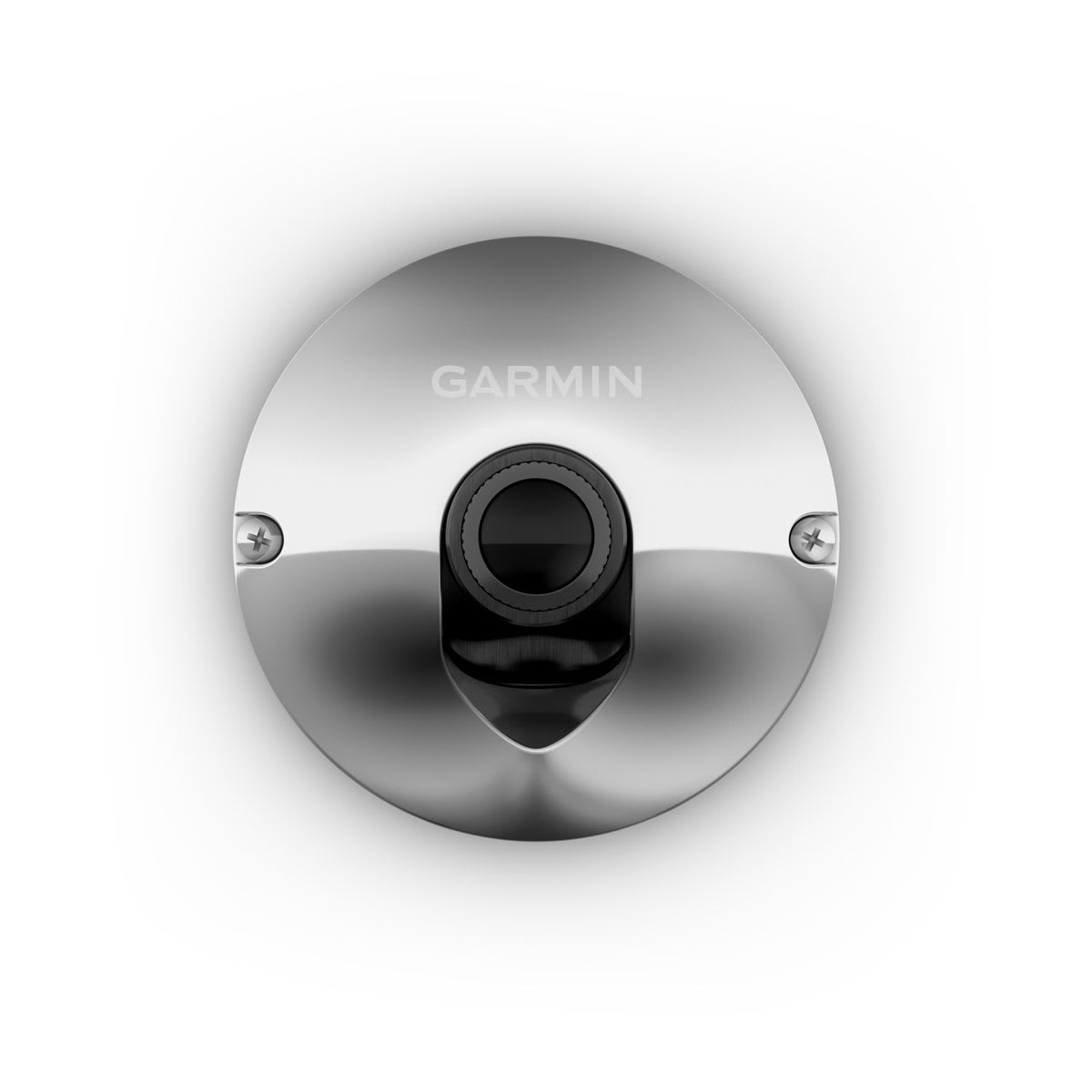

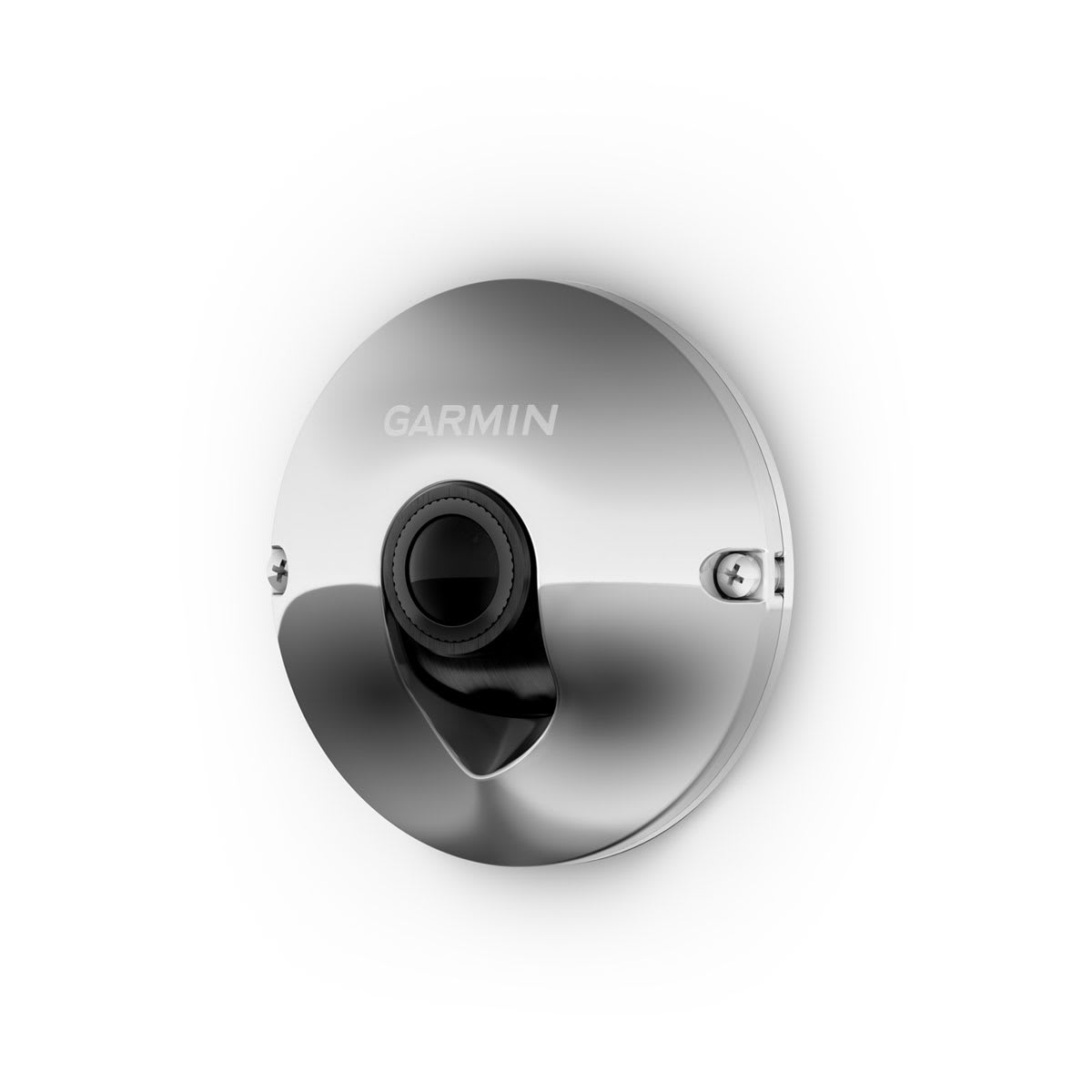

GC™ 255 Flush Mount Camera

BRING VISION TO YOUR HELM

Take the stress out of docking your boat with a high-resolution marine camera. Enhance proximity awareness and confidence at the dock and in close quarters with the low-profile GC 255 flush-mount camera.

DISTANCE MARKERS SPECIFIC TO YOUR BOAT AND USER-DEFINED GUIDANCE LINES

1080P HIGH-RESOLUTION OUTPUT¹

DURABLE LOW-PROFILE STAINLESS STEEL FINISH

SEE CAMERA FEEDS IN FISHEYE OR STANDARD VIEW; BIRDSEYE VIEW ALSO AVAILABLE

FULL INTEGRATION ON THE GARMIN MARINE NETWORK OR GARMIN BLUENET^™ NETWORK

WHAT YOU’LL LOVE

GUIDANCE LINES

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

DISTANCE MARKERS

Use distance markers (requires professional installation and calibration) so you know how far away you are from objects.

RUGGED INSTALLATION

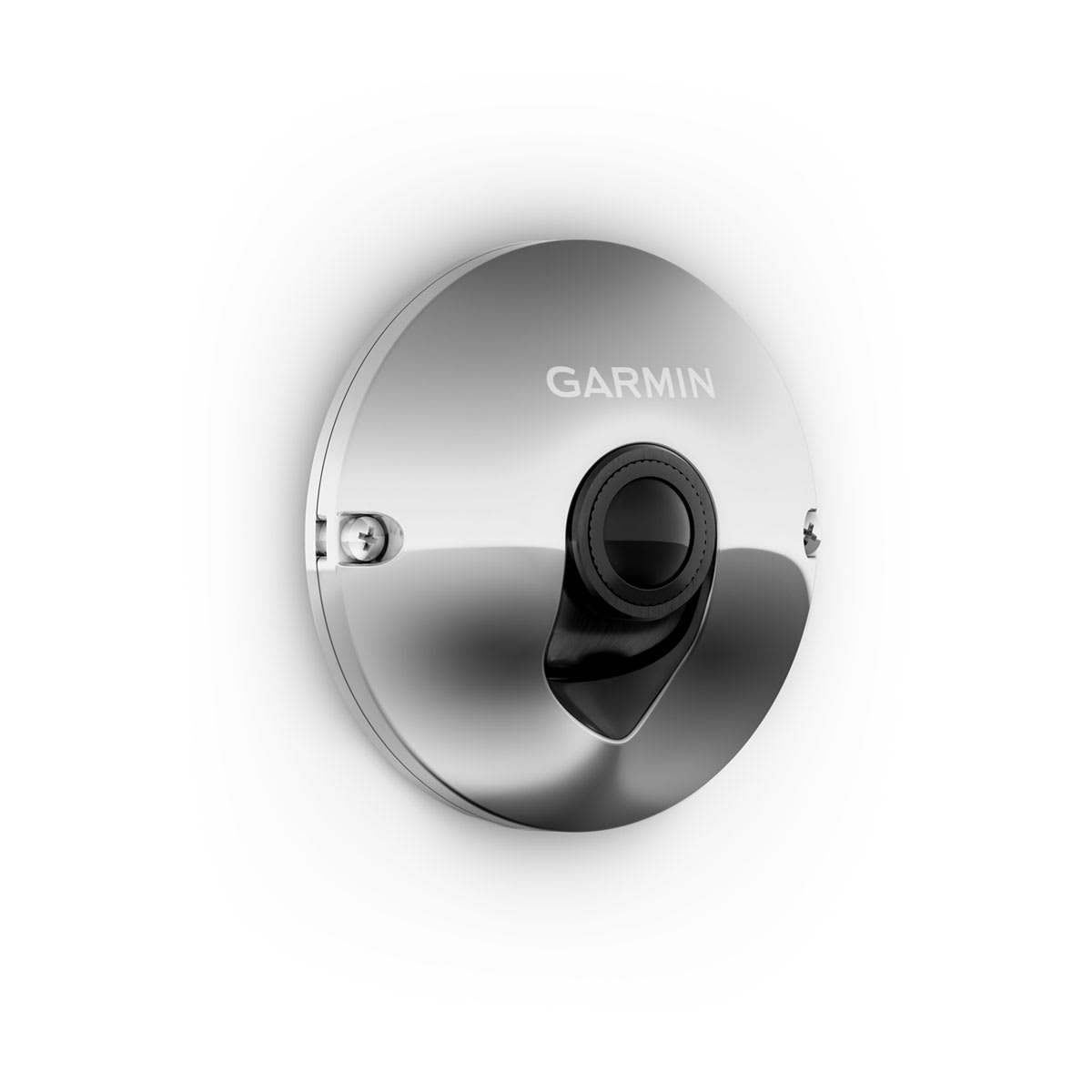

Thru-hull flush mounting ensures sleek and rugged installation.

THREE CAMERA VIEWS

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view (requires professional installation and calibration).

MULTIPLE CAMERA FEEDS

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

SEE WHAT YOU WANT

Take a closer look with digital zoom, or get a different perspective with digital pan.

A chartplotter with 4K resolution and 27” display? That’s GPSMAP® 9000.

Learn More

Enjoy premium sound quality on the water with Fusion® marine audio equipment.

Learn More

See what’s around you, even when your eyes can’t, with a marine radar.

Learn More

¹1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Specs

• Unit dimensions: 3.2” x 3.2” x 3.3” (8.1 x 8.1 x 8.38 cm), body; 3.2″ x 3.2″ x 0.95″ (8.1 x 8.1 x 2.4 cm)
• Weight: 22.9 oz (650 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: thru-hull installation
• Rugged housing: yes (high impact)
• Install below rub rail: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels*
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160°H/90°V
• Operating temperature: -20°C to +60°C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

*1080p resolution available on select chartplotters only
