AWESOME OUTPUT. UNSURPASSED VALUE.
BassWedge systems are engineered to extract optimum performance from our potent W0v3 drivers. These affordable systems feature common-chamber, slot-ported enclosures that release a ton of output.
EXTENDED SIDES FOR VERSATILE PLACEMENT OPTIONS
HIGHLY CAPABLE W0v3 SUBWOOFER

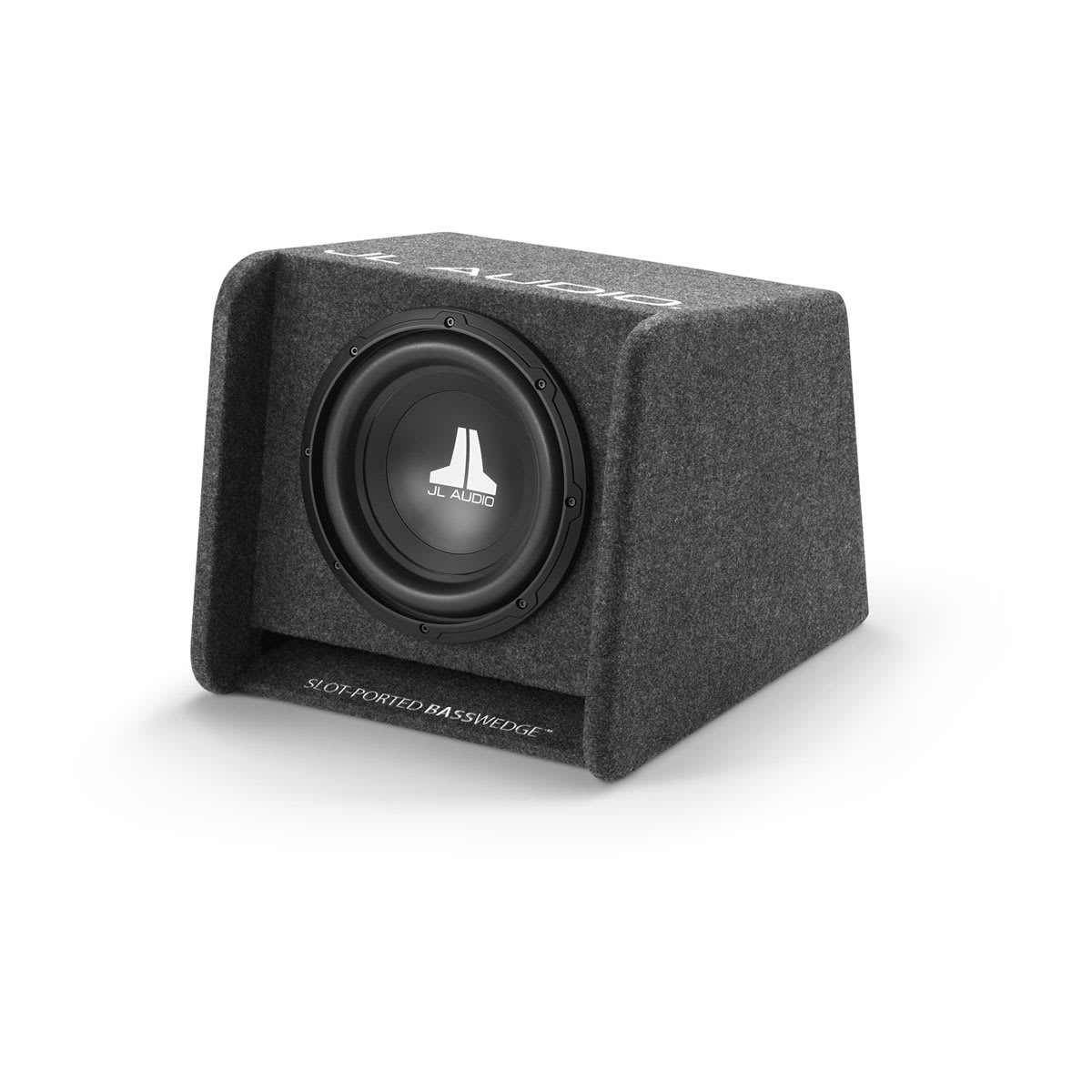

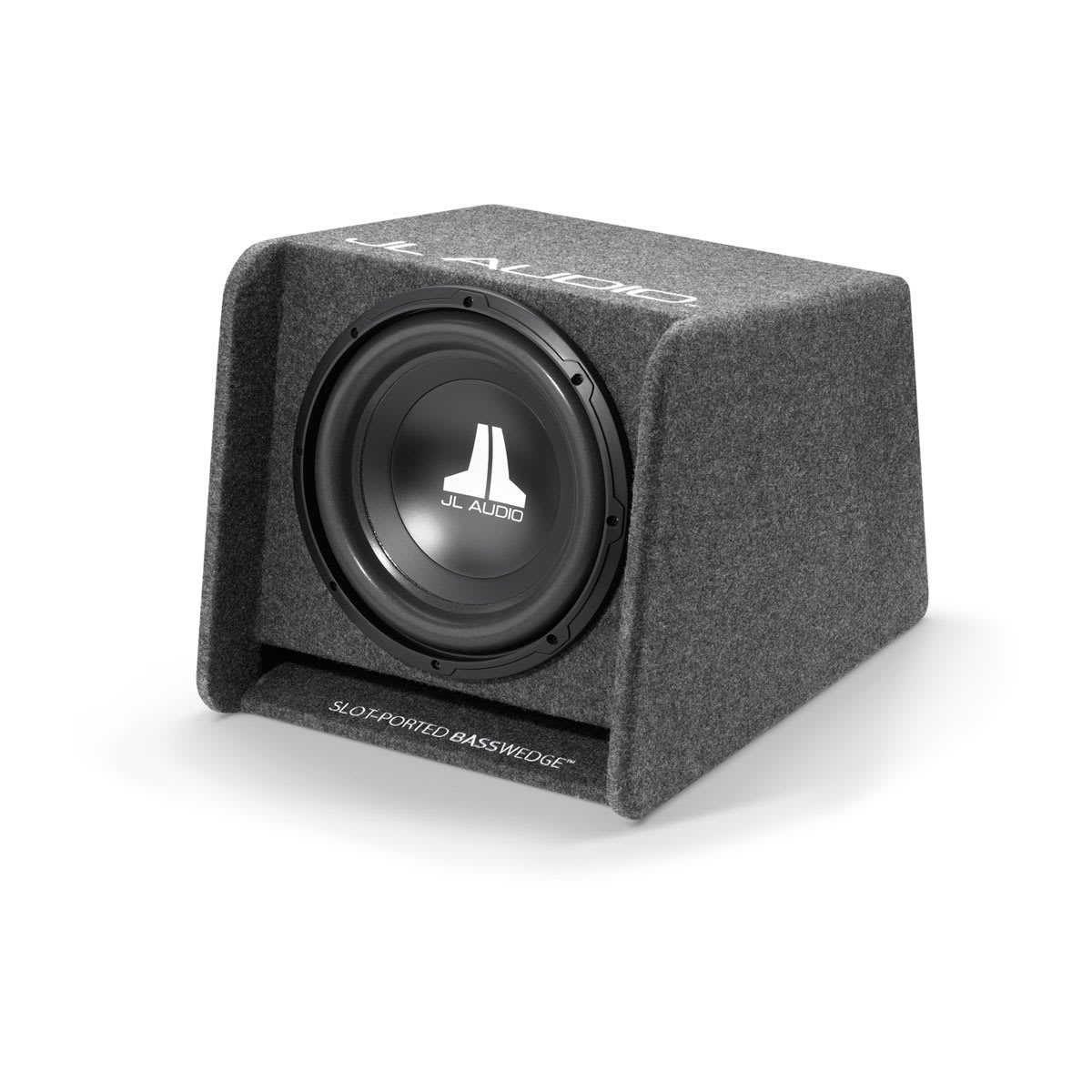

SLOT-PORTED ENCLOSURE DESIGN

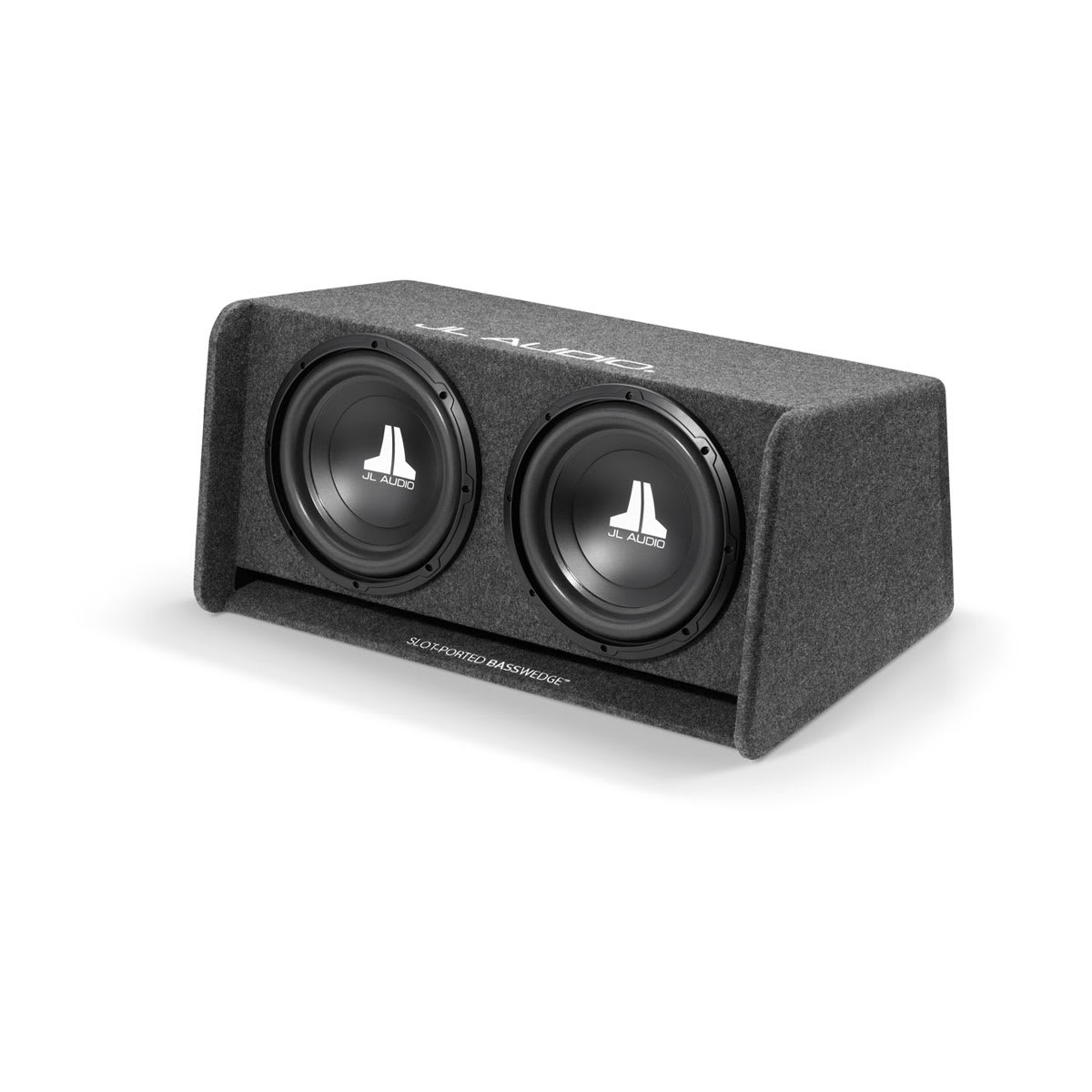

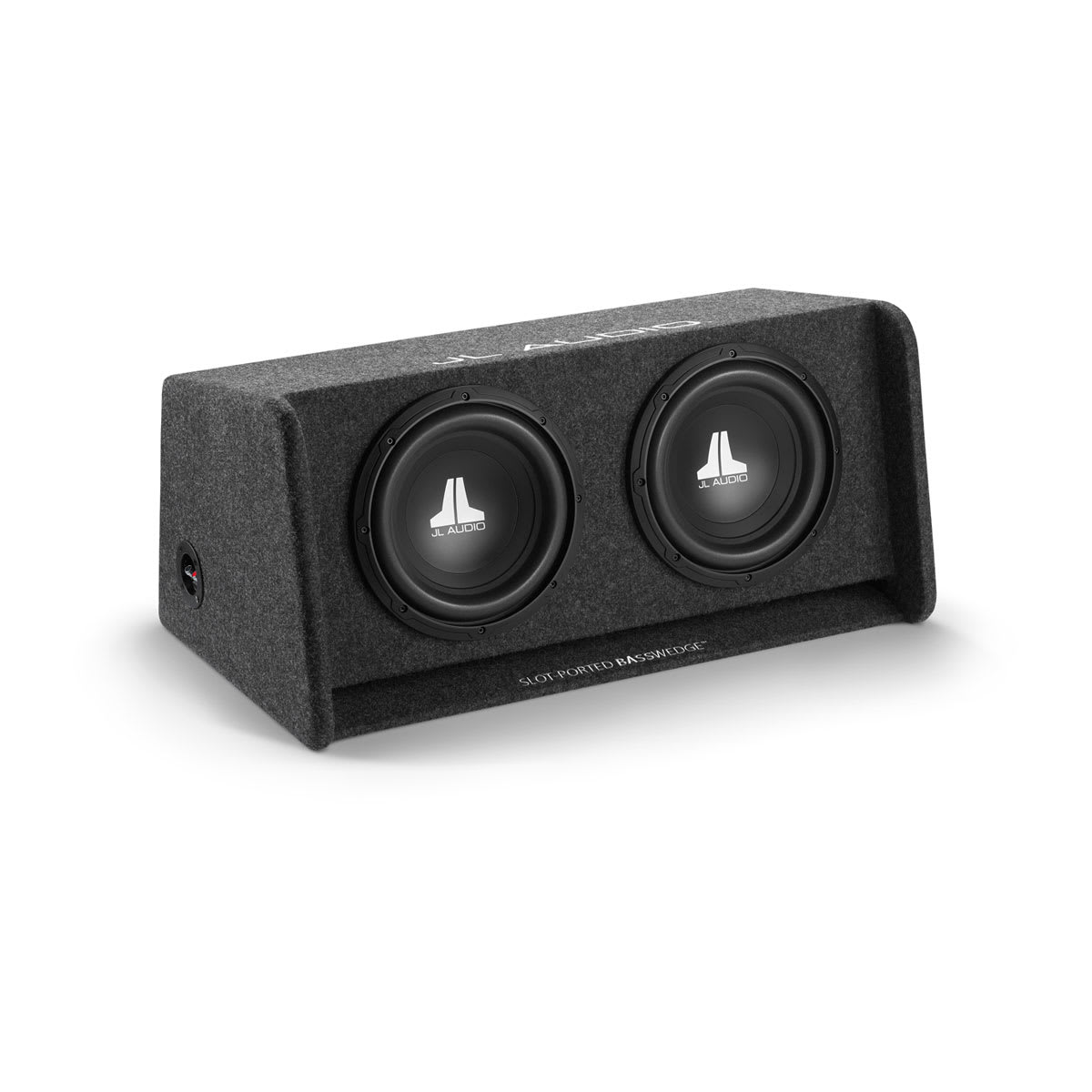

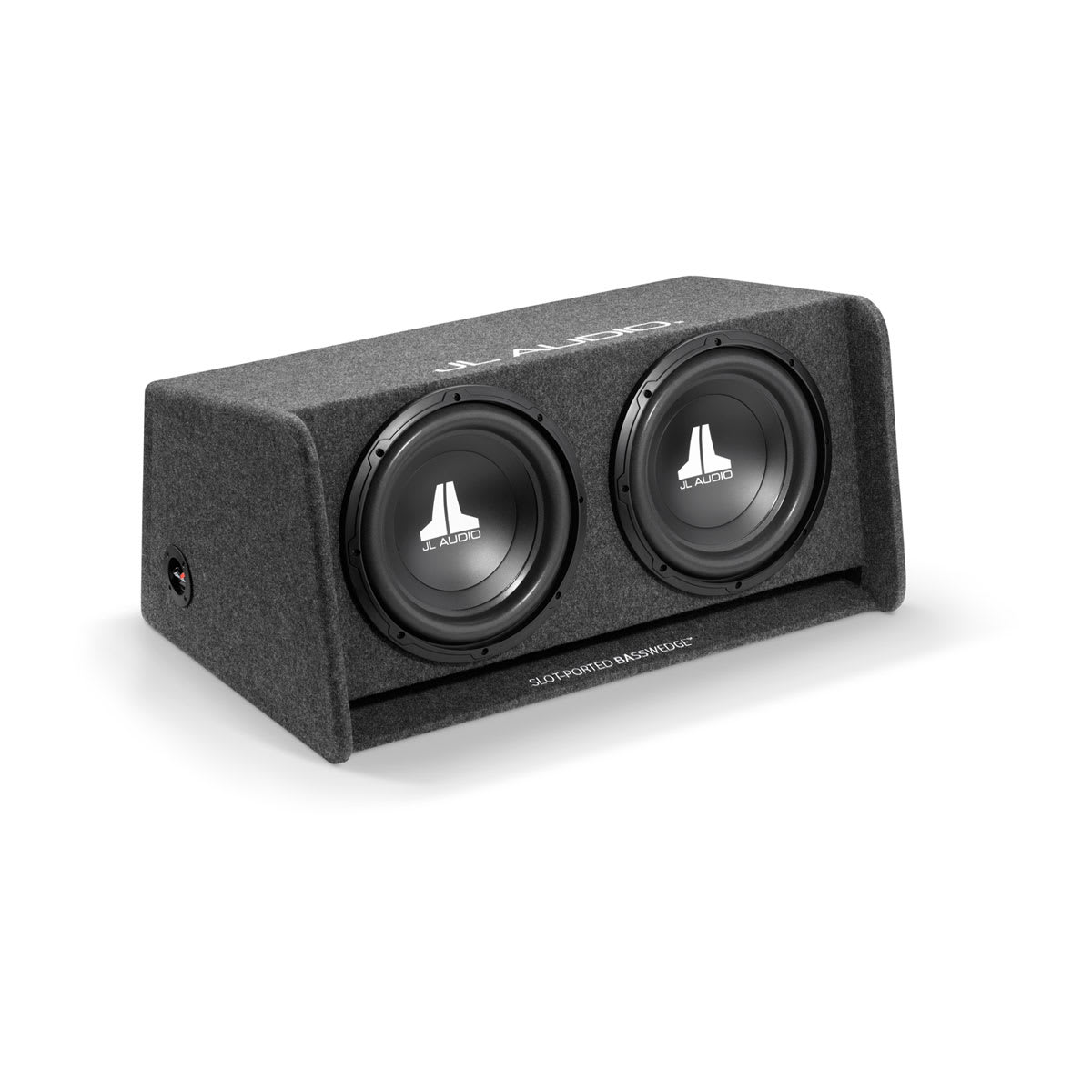

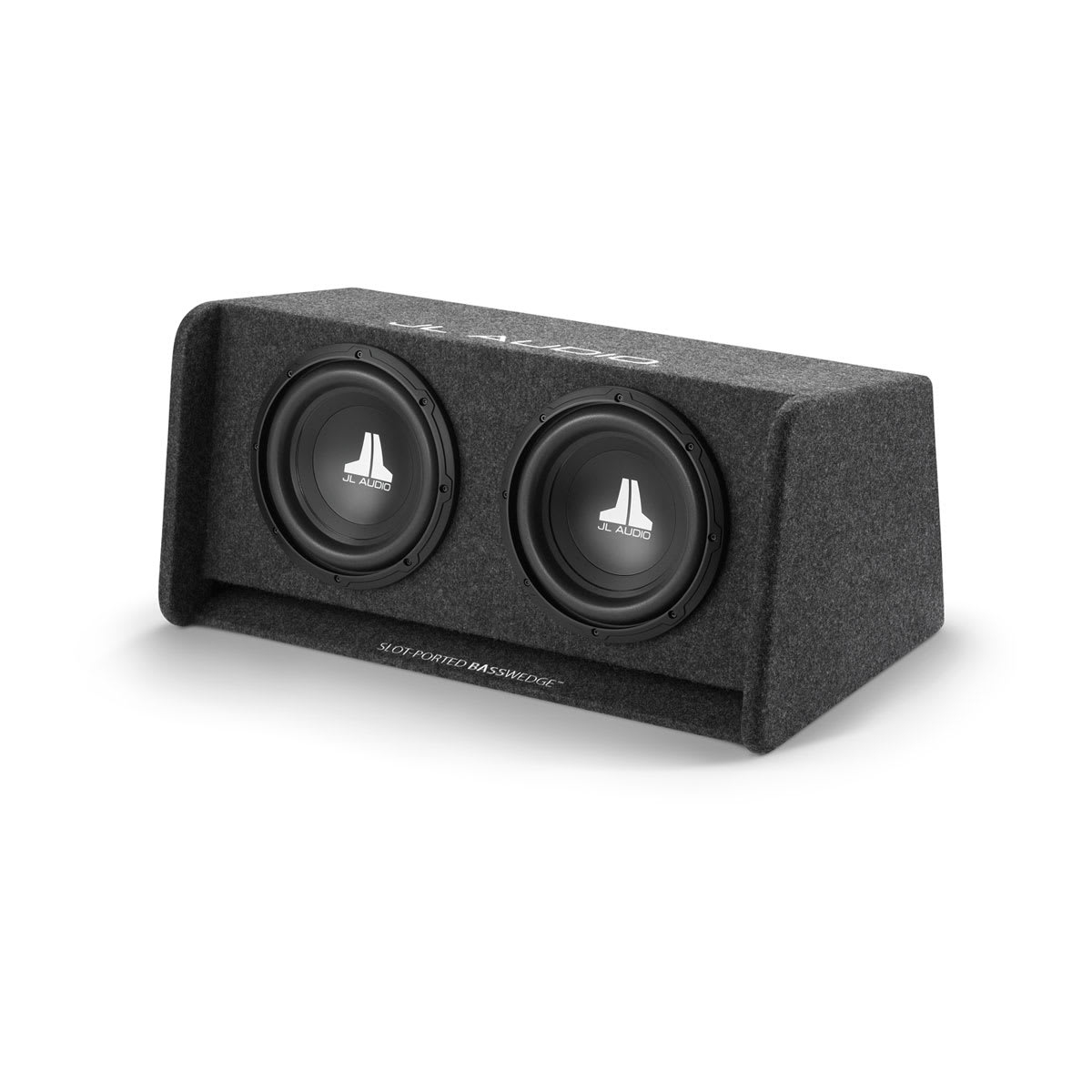

SINGLE OR DUAL WOOFER OPTIONS
2-YEAR WARRANTY
WHAT YOU’LL LOVE
VERSATILE PLACEMENT

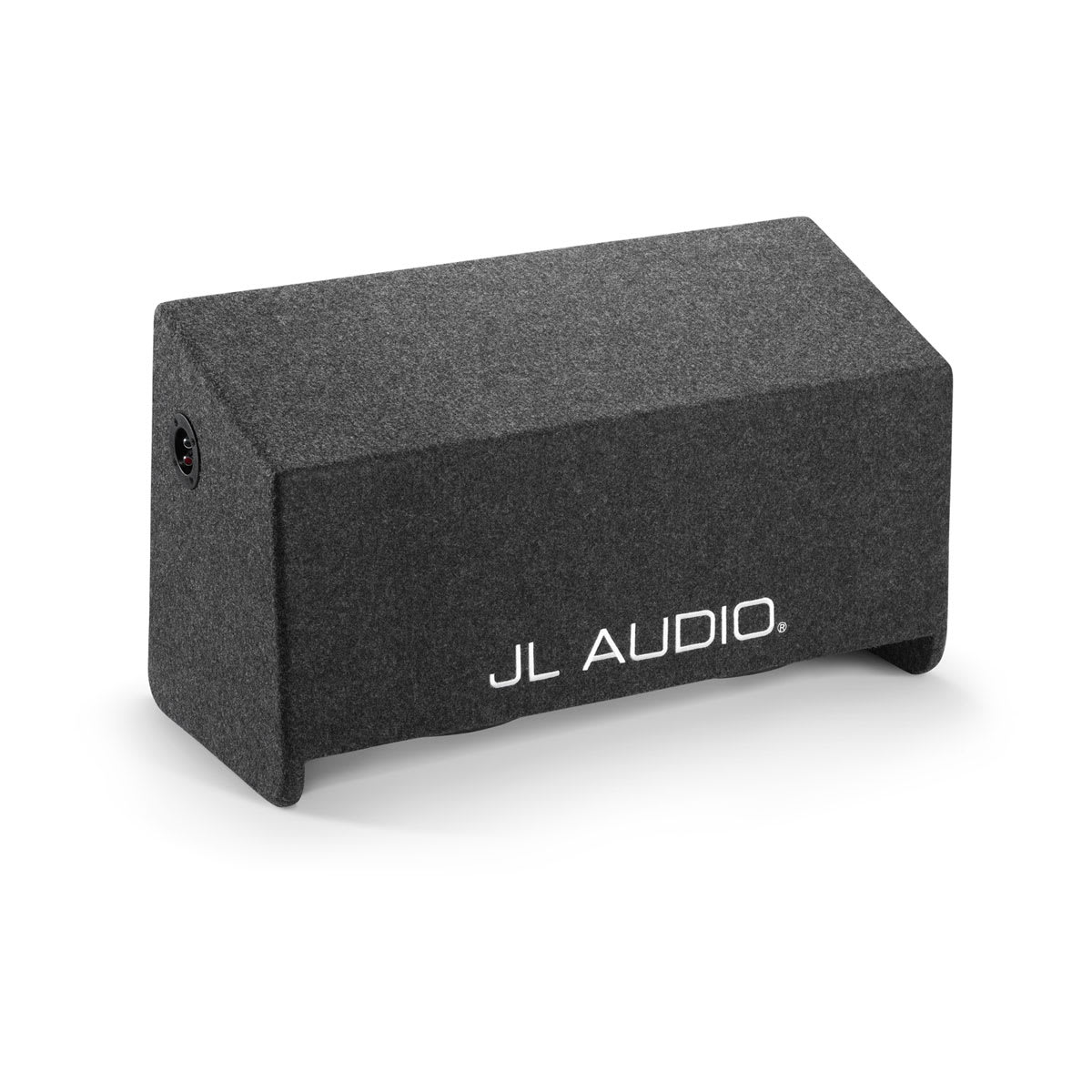

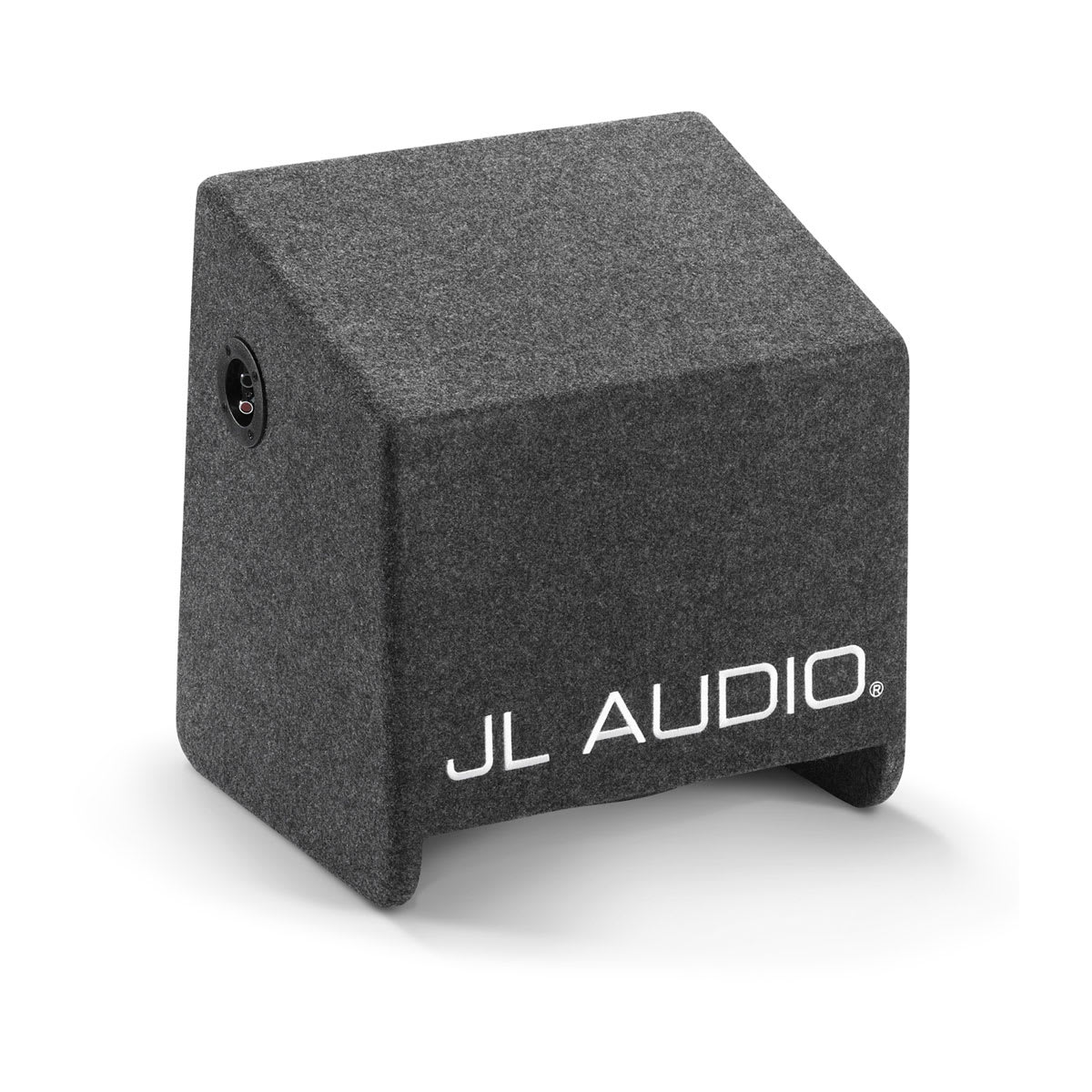

The BassWedge system has extended sides so it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward- or rear-firing installations.
W0v3 SERIES SUBWOOFER
This subwoofer features a tough polypropylene cone that resists flexing and a durable foam surround that’ll stand up to hard use. The cone’s extra-long excursion capability lets it hit truly deep notes with minimal distortion, while the hefty 2-inch voice coil drives the woofer.
GREAT LOOK, BETTER PRICE

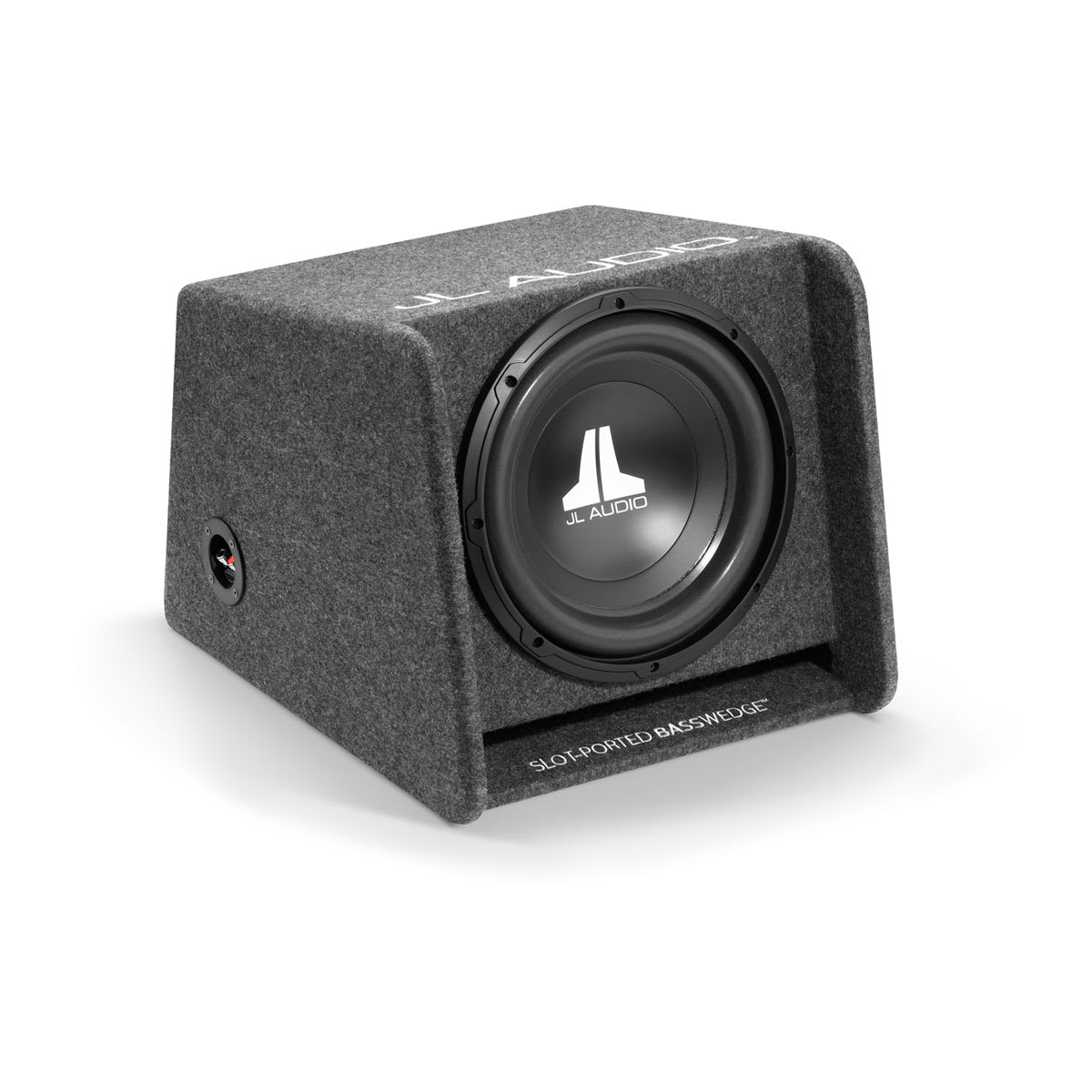

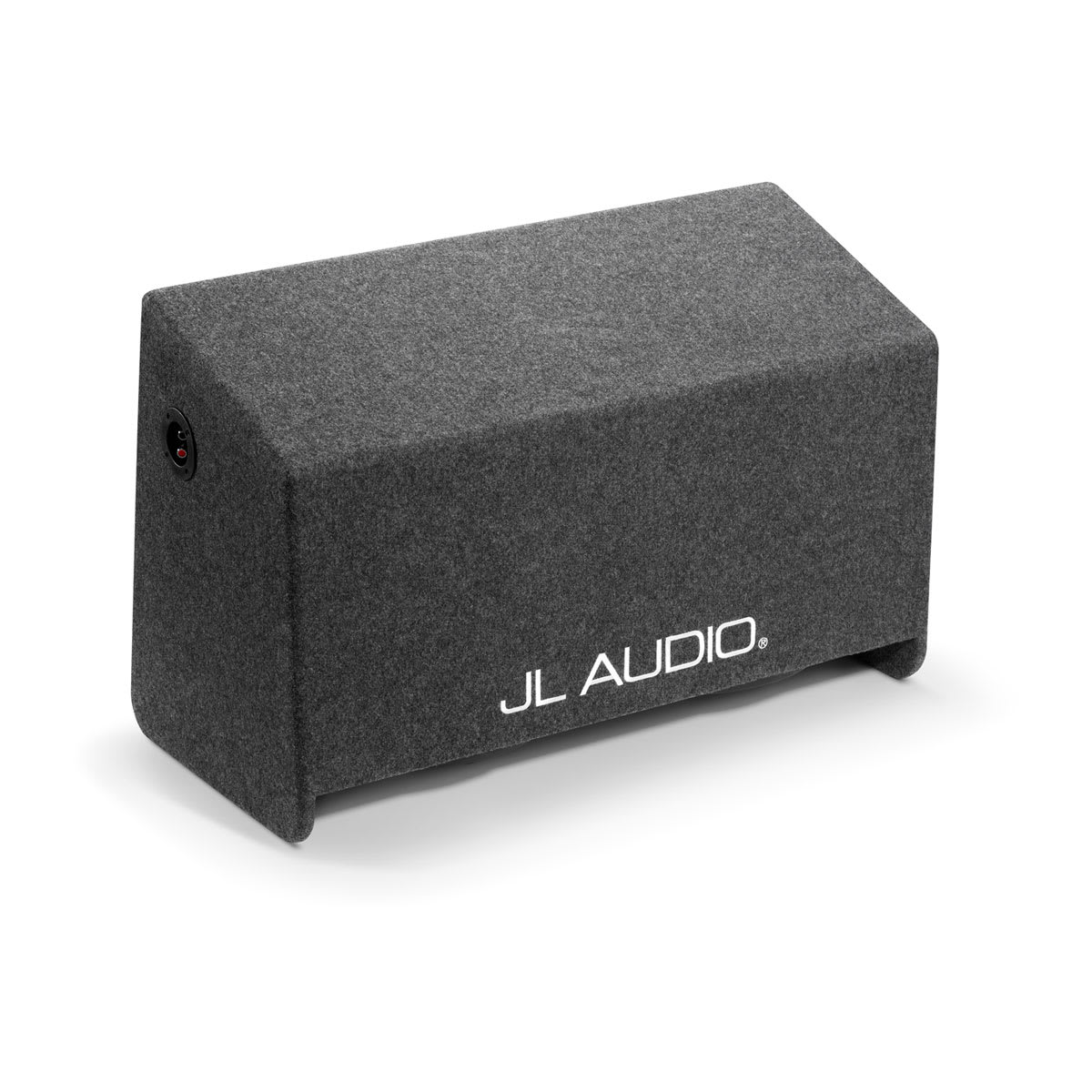

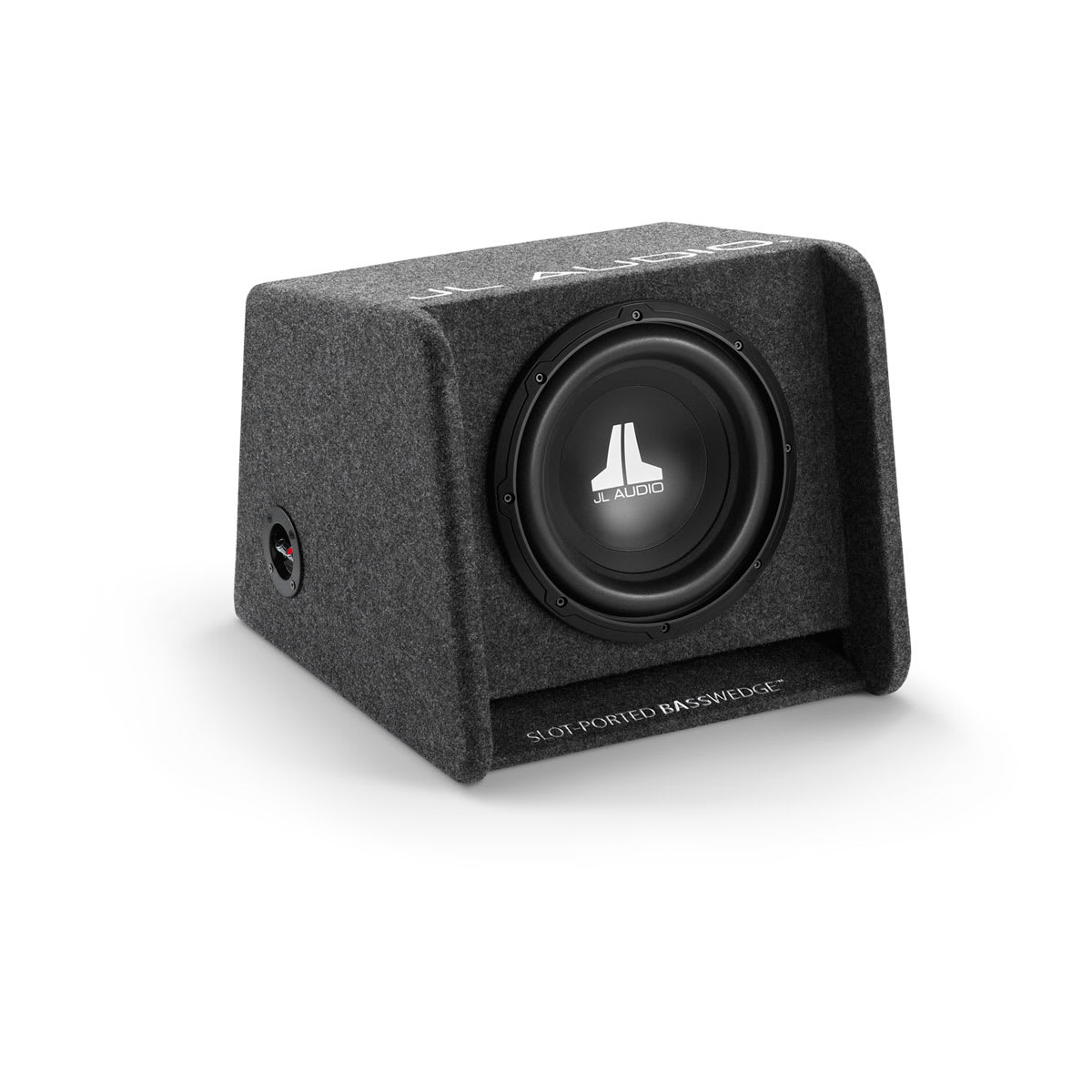

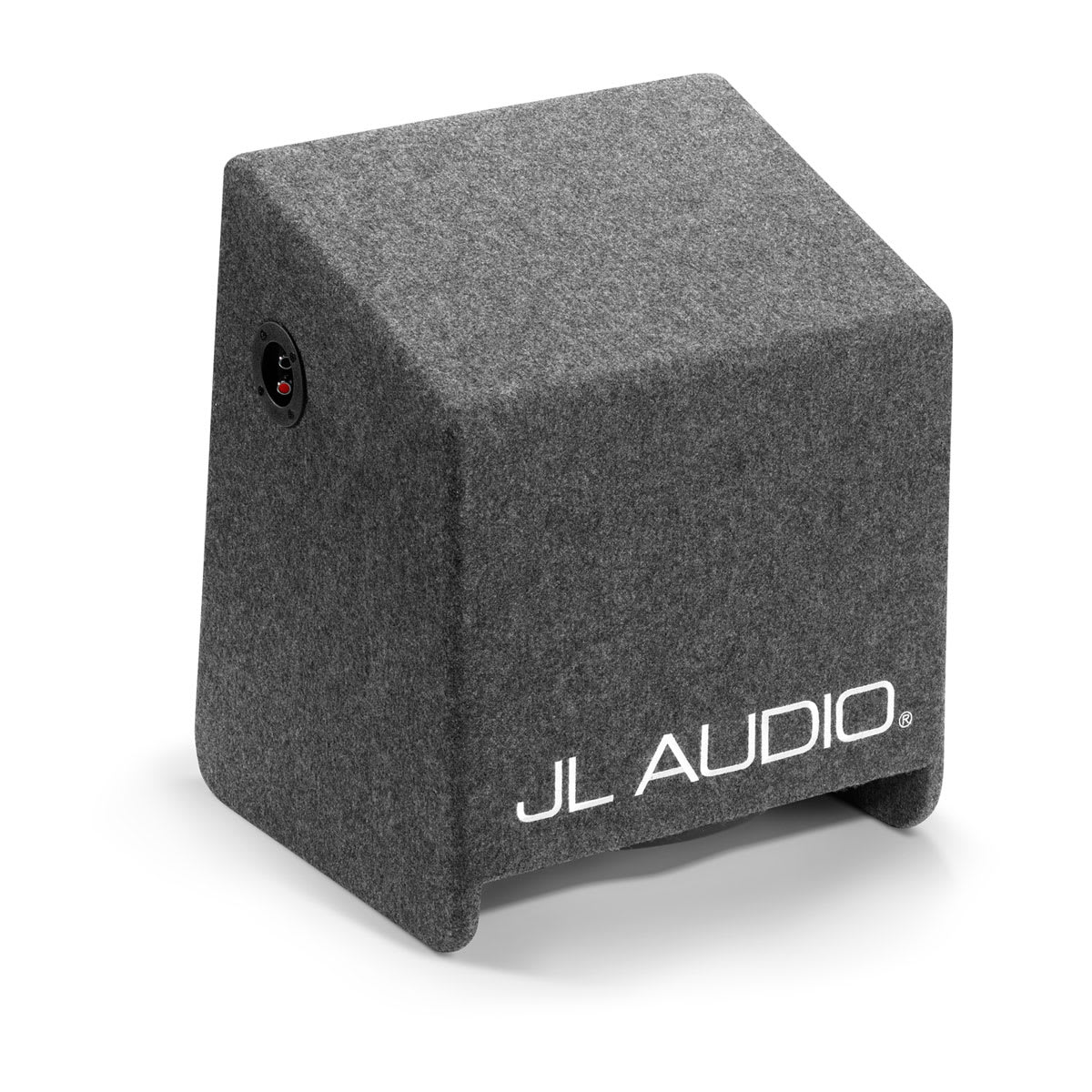

Dark-gray high-grade automotive carpet is embroidered with “JL AUDIO” on the top edge and “Slot-Ported BassWedge” on the port mouth.
W0v3 SUBWOOFER TECHNOLOGIES
DMA-OPTIMIZED WOOFER
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
ELEVATED FRAME COOLING™ TECHNOLOGY
This patented frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.
Specs
General |
|
| Warranty | 2 years |
|---|---|
| Sizes | 10″/Dual 10″/12″/Dual 12″ |
| Physical dimensions (Height) | 10″/Dual 10″: 13.77″ (350 mm) 12″/Dual 12″: 15.18″ (386 mm) |
| Physical dimensions (Width) | 10″: 15.51″ (394 mm) 12″: 16.31″ (414 mm) Dual 10″: 29.61″ (752 mm) Dual 12″: 31.375″ (797 mm) |
| Physical dimensions (Depth) | 10″/Dual 10″: Top: 14″ (356 mm) 10″/Dual 10″: Base: 17.38″ (441 mm) 12″/Dual 12″: Top: 15.75″ (400 mm) 12″/Dual 12″: Base: 20.3″ (516 mm) |
| Weight | 10″: 29 lbs (13.15 kg) 12″: 33.1 lbs (15 kg) Dual 10″: 50.7 lbs (23 kg) Dual 12″: 60.3 lbs (27.35 kg) |
| Continuous power handling (RMS) | 10″/12″: 300 W Dual 10″/Dual 12″: 600 W |
| Nominal impedance | 2 Ω or 4 Ω |
| Recommended amplifier power (RMS) | 10″/12″: 75-300 W Dual 10″/Dual 12″: 150-600 W |
| Cone material | Mineral-filled polypropylene |
| Enclosure type | Slot-ported |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
