READY FOR A HIGHER LEVEL OF SUB-BASS PERFORMANCE?

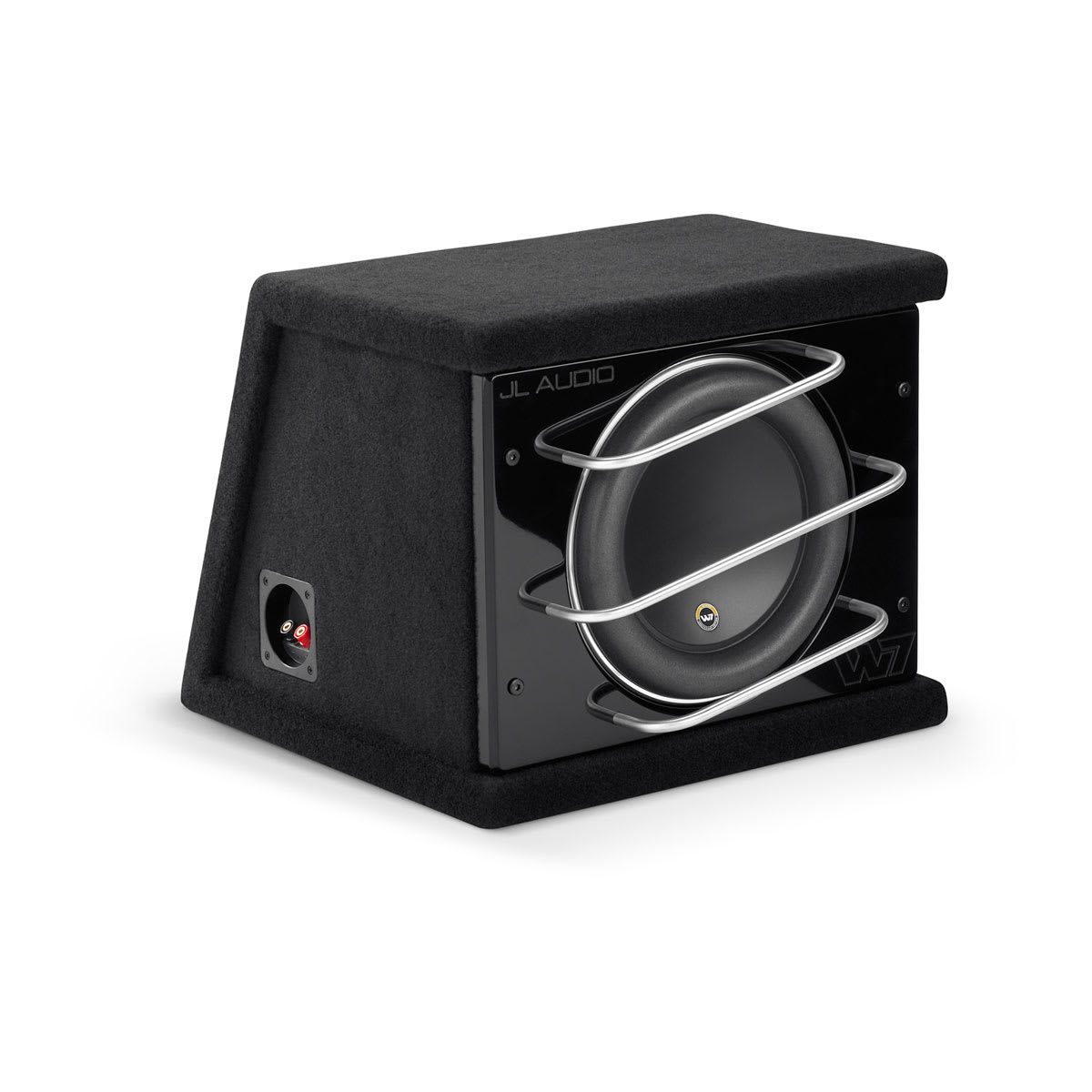

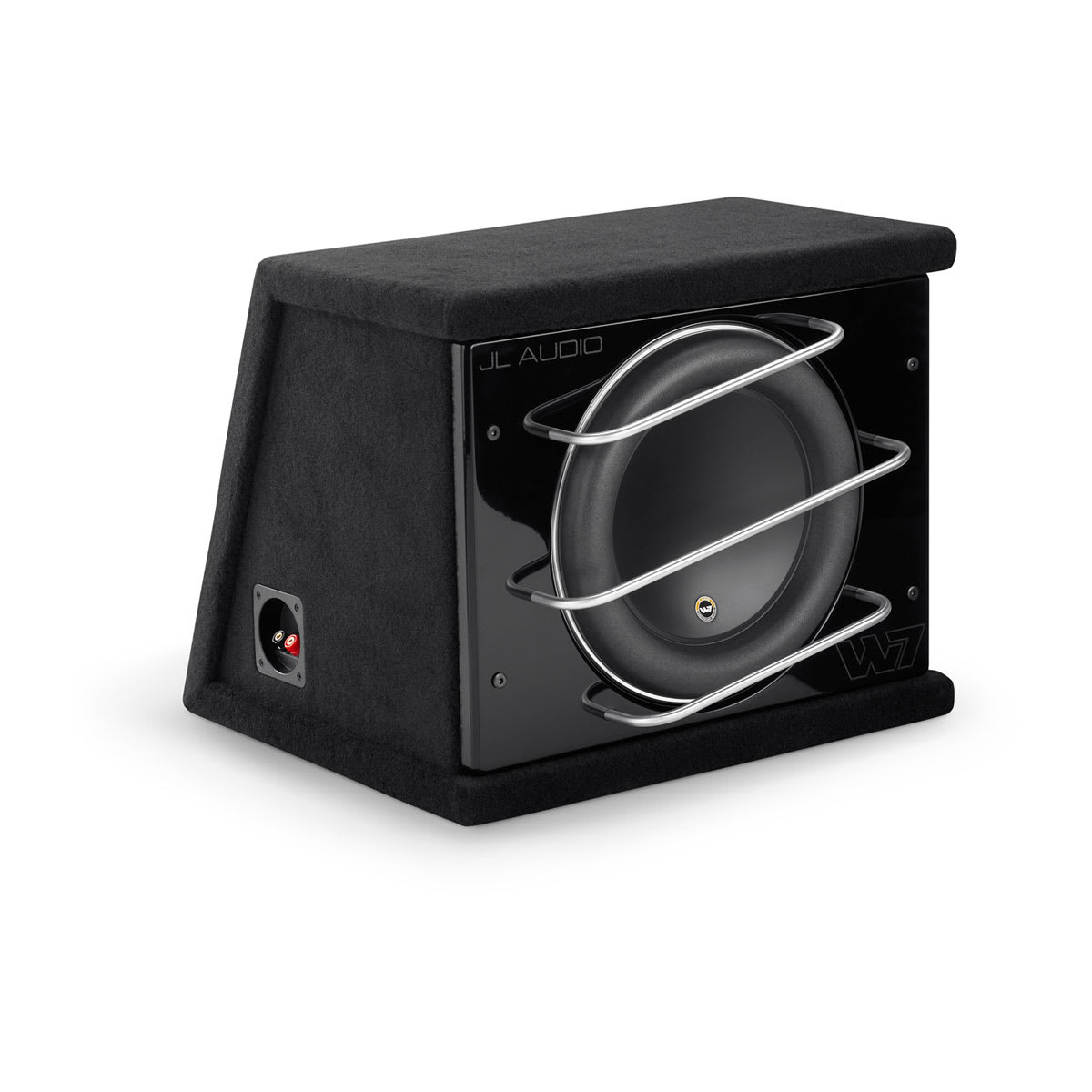

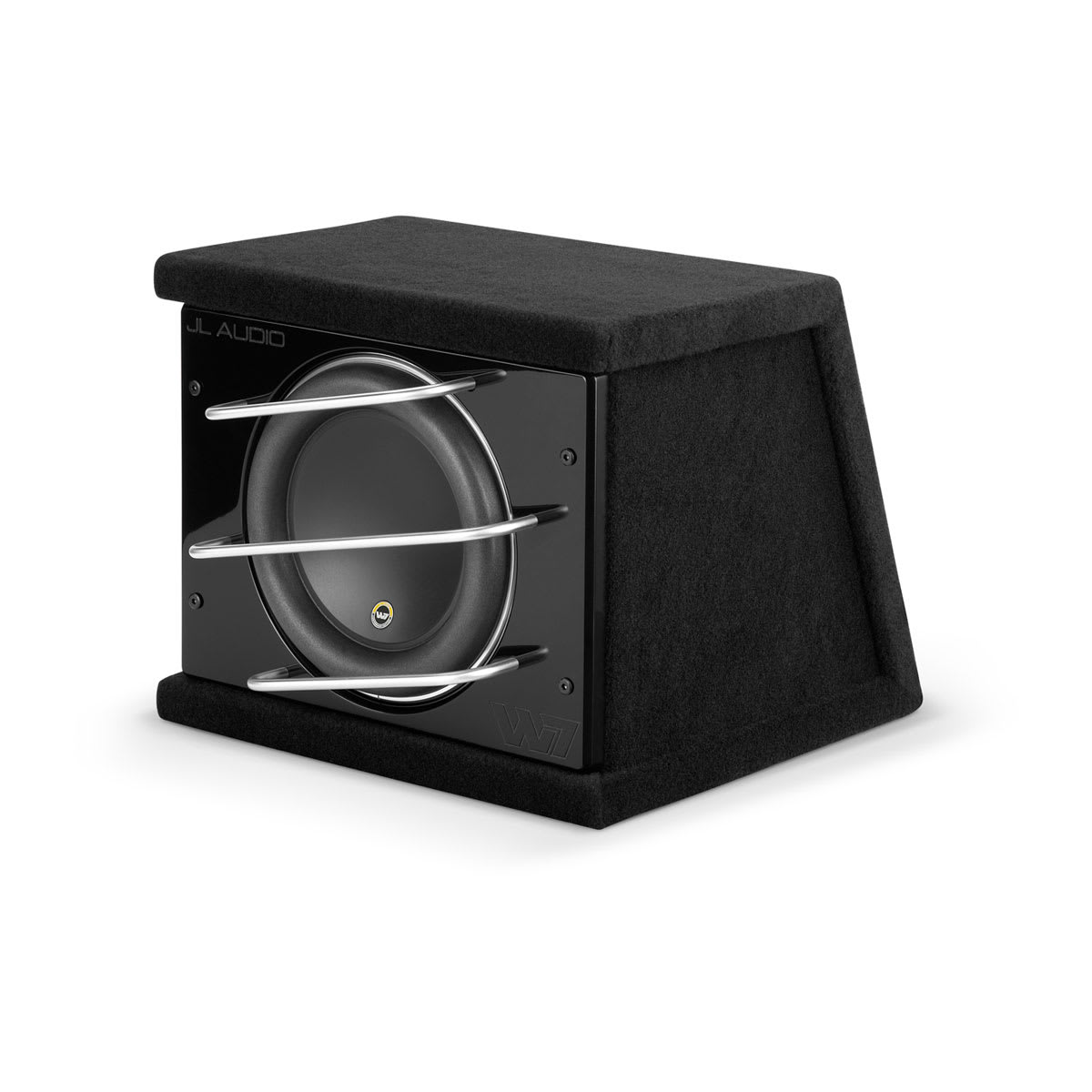

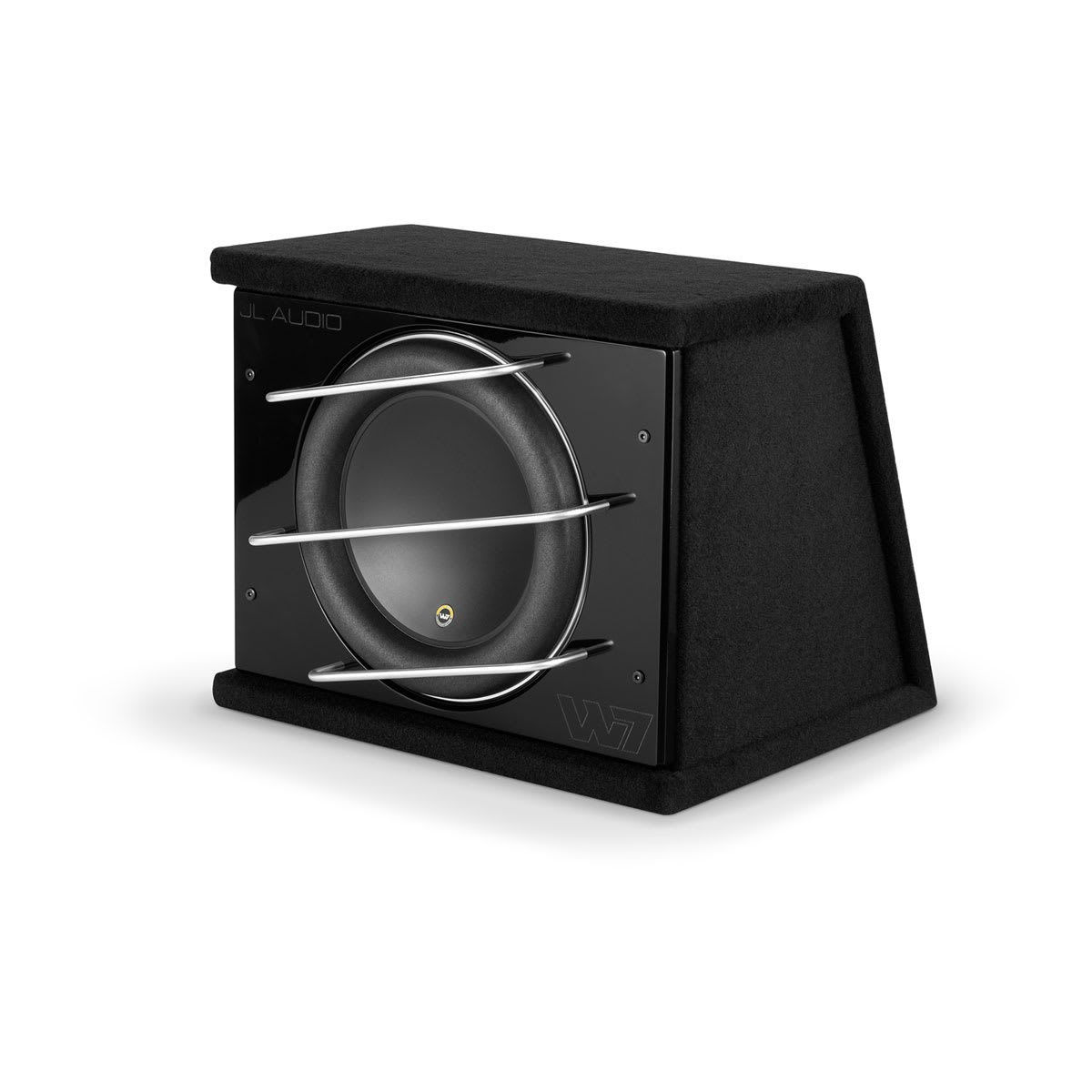

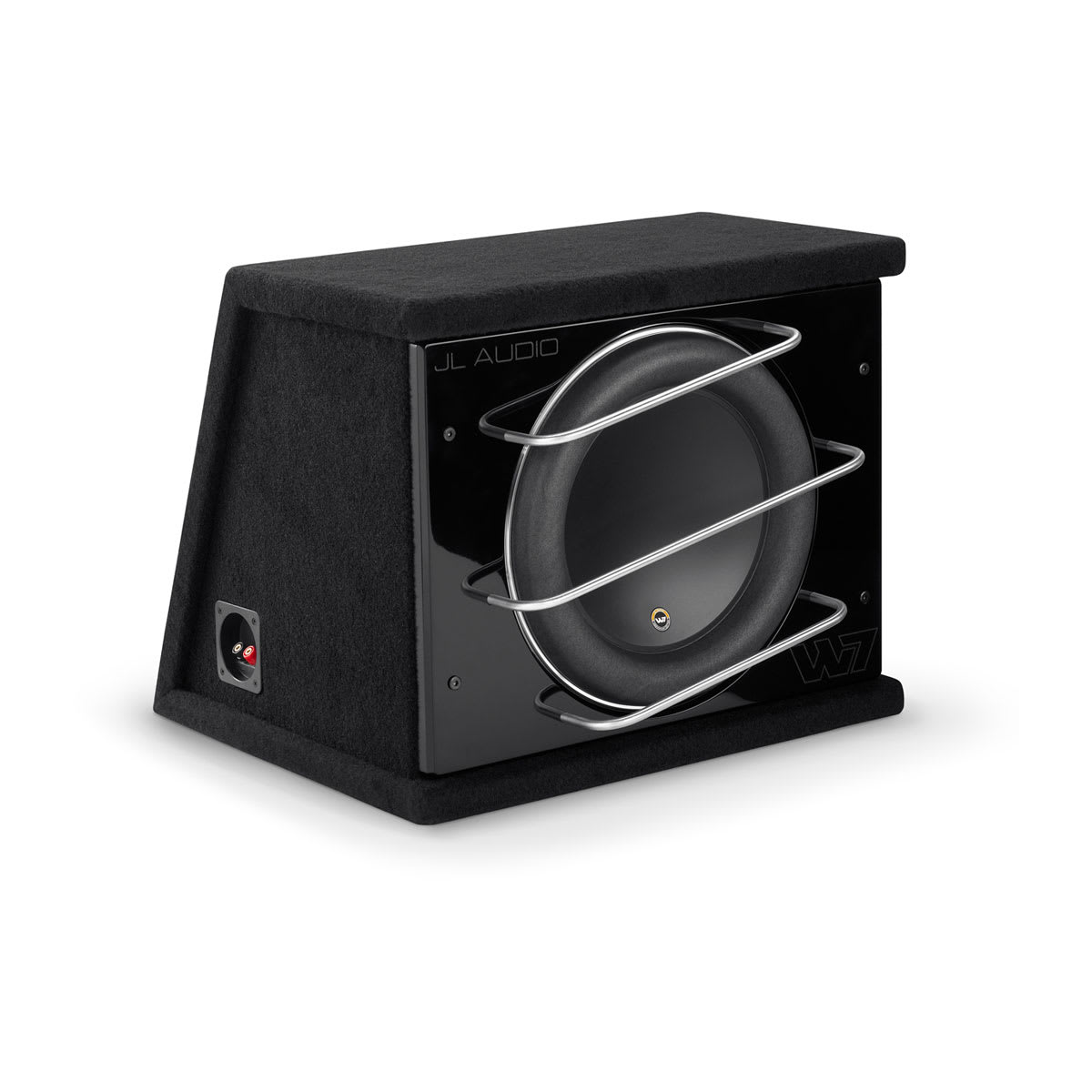

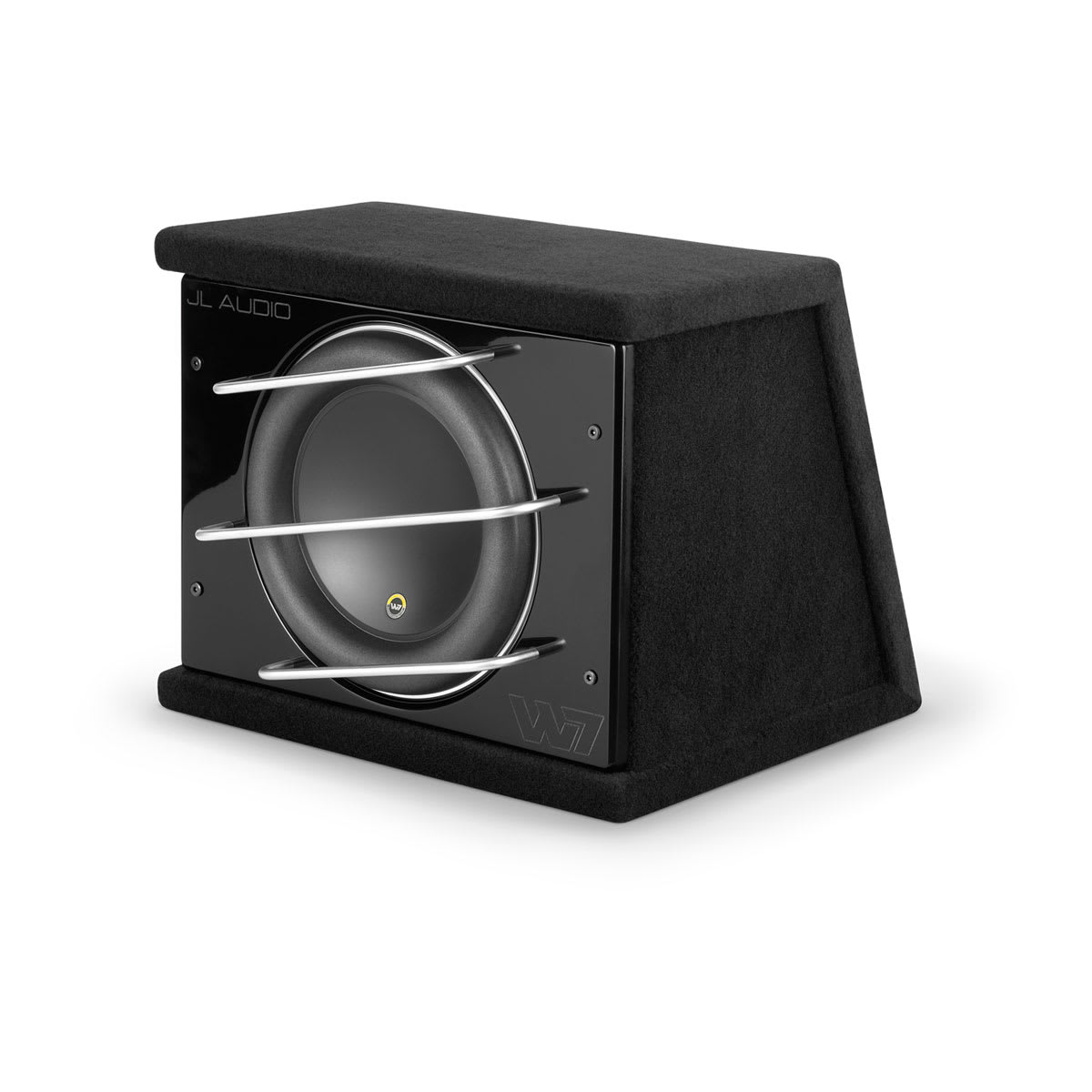

For those seeking the ultimate in compact-enclosure sub-bass fidelity, the ProWedge system meets the challenge — harnessing the power of the flagship W7AE series subwoofer within a massively built sealed enclosure. Accented by sleek gloss-black front panels and aluminum bar grilles, these systems have it all: extension, impact, detail and smooth response at any listening level.
EXPERIENCE TIGHT BASS RESPONSE AT ALL VOLUME LEVELS
CHOOSE 10-, 12- OR 13.5-INCH SUBWOOFERSIZES
ANGLED-BACK, SEALED ENCLOSURE DESIGN
TOP-TIER JL AUDIO W7AE SUBWOOFER
HEAVY-DUTY CABINET CONSTRUCTION
2-YEAR WARRANTY
WHAT YOU’LL LOVE
ENGINEERED FOR TIGHT, PRECISE SUB-BASS RESPONSE
The ProWedge systems with W7AE series subwoofers are built to perform at serious output levels while delivering world-class, sub-bass fidelity. You’ll hear the difference in bass playback that is crisp, precise and evenly balanced.
SEALED ENCLOSURE DESIGN
Compared to free-air or ported box subwoofer systems, the sealed enclosure of the ProWedge design offers advantages in terms of power handling and bass precision. The sealed enclosure prevents air leaks, maintaining constant pressure on the back of the woofer for tighter cone control at all frequencies.
ELEGANT STYLING
The sturdy MDF enclosure is finished in high-grade automotive carpet with gloss-black laminated decorative front baffle trim. Three solid aluminum bars add style and woofer protection.
V-GROOVE MDF CONSTRUCTION
This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.
SIMPLIFIED INSTALLATION
The ProWedge subwoofer system comes wired, loaded and ready to connect via a five-way binding post terminal.
W7AE SUBWOOFER TECHNOLOGIES
DMA-OPTIMIZED SPEAKERS
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
W-CONE TECHNOLOGY
Using two lightweight mineral-filled polypropylene skins bonded in a unique W-cone design, the W7AE series subwoofer combines extreme durability and moisture-resistance with extra rigidity for powerful bass performance.
ELEVATED FRAME COOLING™ TECHNOLOGY
This patented frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.
ENGINEERED LEAD-WIRE SYSTEM
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
FCAM™ TECHNOLOGY
This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
OVERROLL™ SURROUND TECHNOLOGY
By utilizing space wasted in conventional speakers, this ground-breaking innovation controls the W7’s massive excursion without sacrificing precious cone area.
RADIAL CROSS-DRILLED POLE-PIECE
Through machined holes on the outer wall of the pole-piece, this innovative venting system enhances thermal dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with Elevated Frame Cooling technology to effectively remove heat from the voice coil.
Specs
General |
|
| Warranty | 2 years |
|---|---|
| Sizes | 10″/12″/13.5″ |
| Physical dimensions (Height) | 10″: 14.625″ (371 mm) 12″: 16.50″ (419 mm) 13.5″: 18.25″ (464 mm) |
| Physical dimensions (Width) | 10″: 17.75″ (451 mm) 12″: 21.25″ (540 mm) 13.5″: 22.5″ (572 mm) |
| Physical dimensions (Depth) | 10″: Top: 11.50″ (292 mm) 10: Base: 16.625″ (422 mm) 12″: Top: 11.25″ (286 mm) 12″: Base: 17″ (432 mm) 13.5″ Top: 11.50″ (292 mm) 13.5″ Base: 18.25″ (464 mm) |
| Weight | 10″: 61.2 lbs (27.77 kg) 12″: 81.7 lbs (37.10 kg) 13.5″: 103.2 lbs (46.79 kg) |
| Continuous power handling (RMS) | 10″: 750 W 12″: 1000 W 13.5″: 1500 W |
| Nominal impedance | see Additional |
| Recommended amplifier power (RMS) | 10″: 300-750 W 12″: 400-1000 W 13.5″: 500-1500 W |
| Cone material | Mineral-filled polypropylene |
| Enclosure type | Sealed, rear-firing design |
| Grille(s) included | yes (aluminum bar grilles) |
Networking & Connections |
|
| Speaker connections | Five-way binding post terminal |
|---|---|
Additional |
|
| Additional | Nominal impedence: 10″/12″: 3 Ω; 13.5″: Dual 1.5 Ω |
|---|---|
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
