THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.

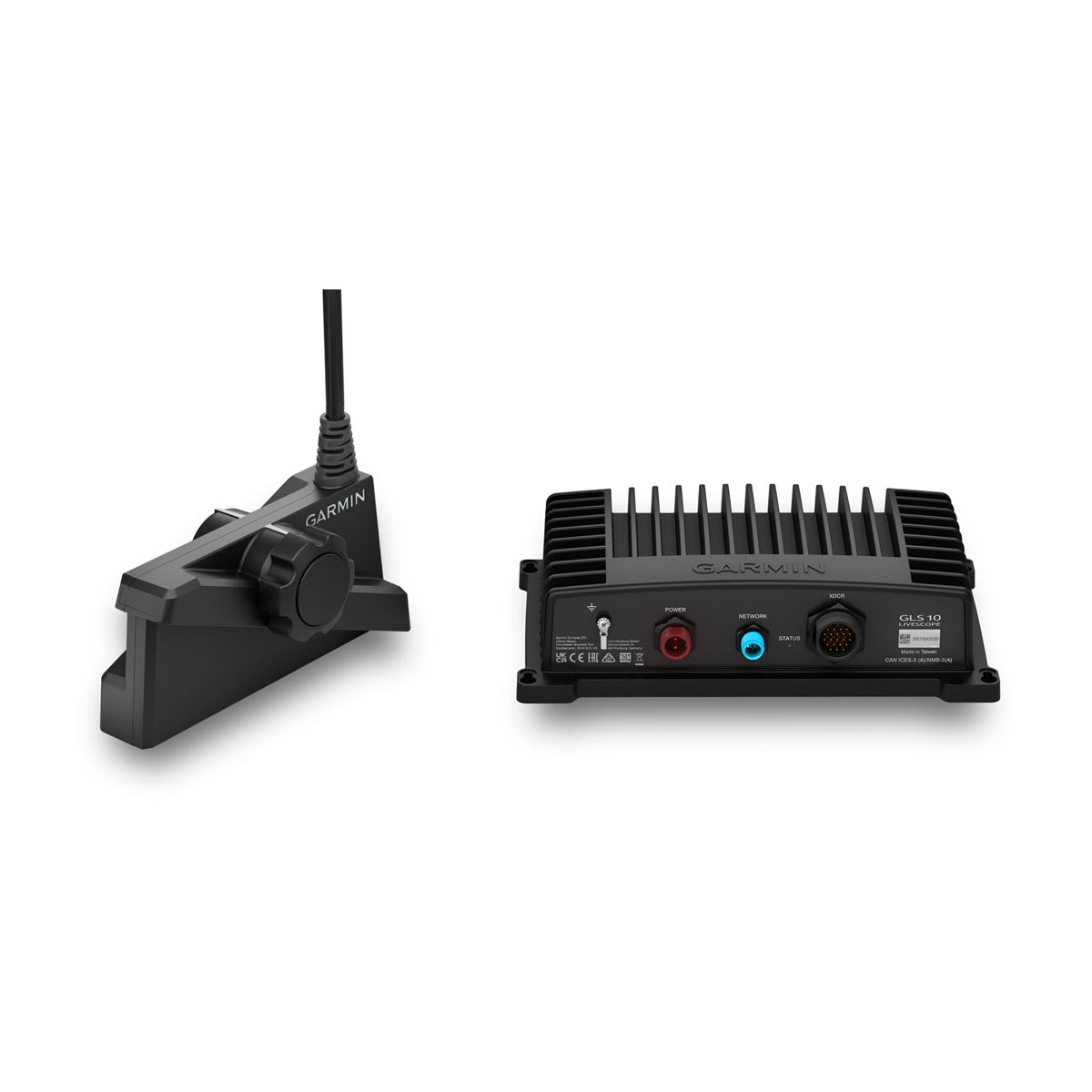

Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
Image definition like you’ve never seen.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
CLEAR VISION
See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILIZATION
A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES
Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
Select a LiveScope mode to fit your environment.

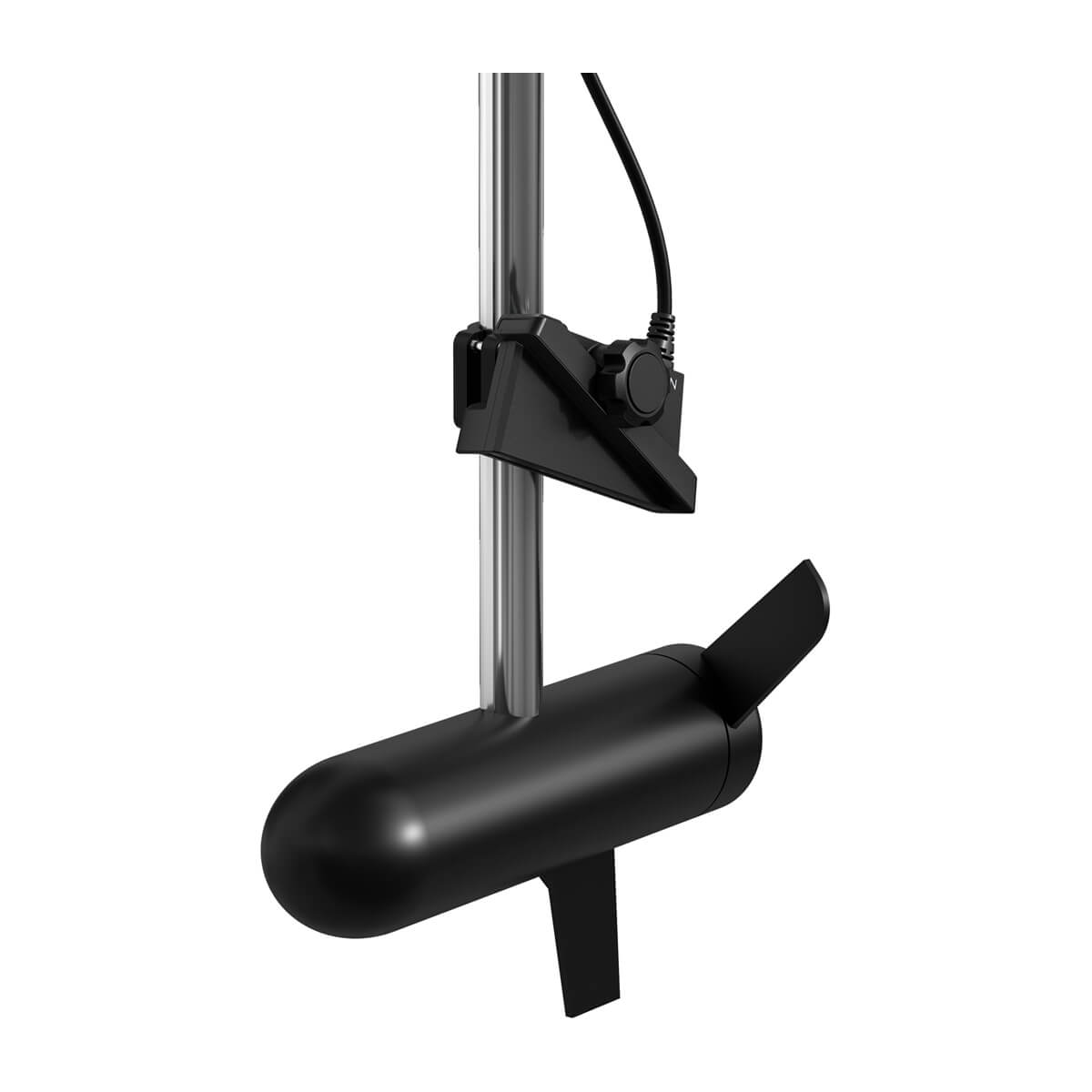

FORWARD MODE
Scout ahead of your boat to see what’s happening in real time.

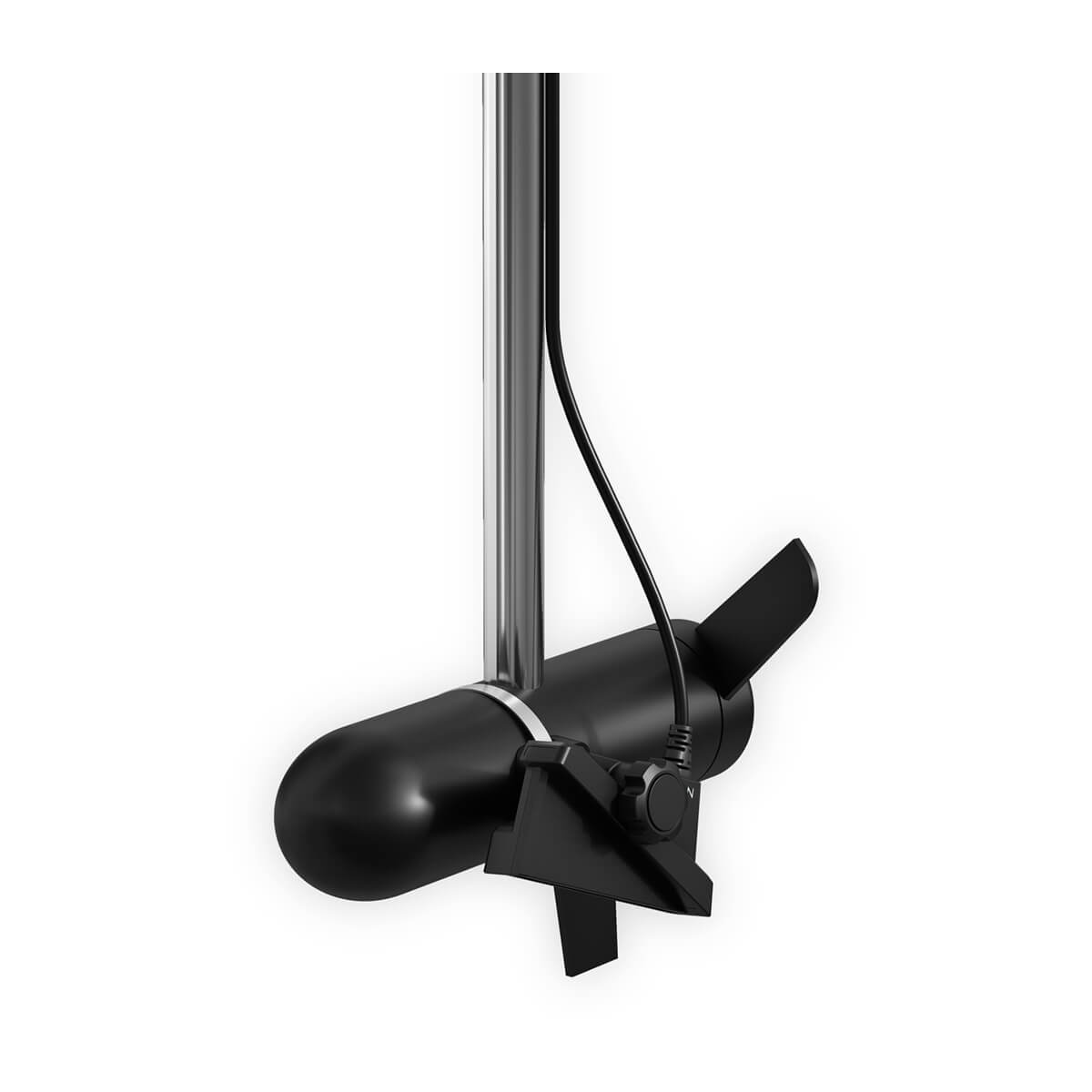

DOWN MODE
Explore live views of the activity directly beneath your boat.

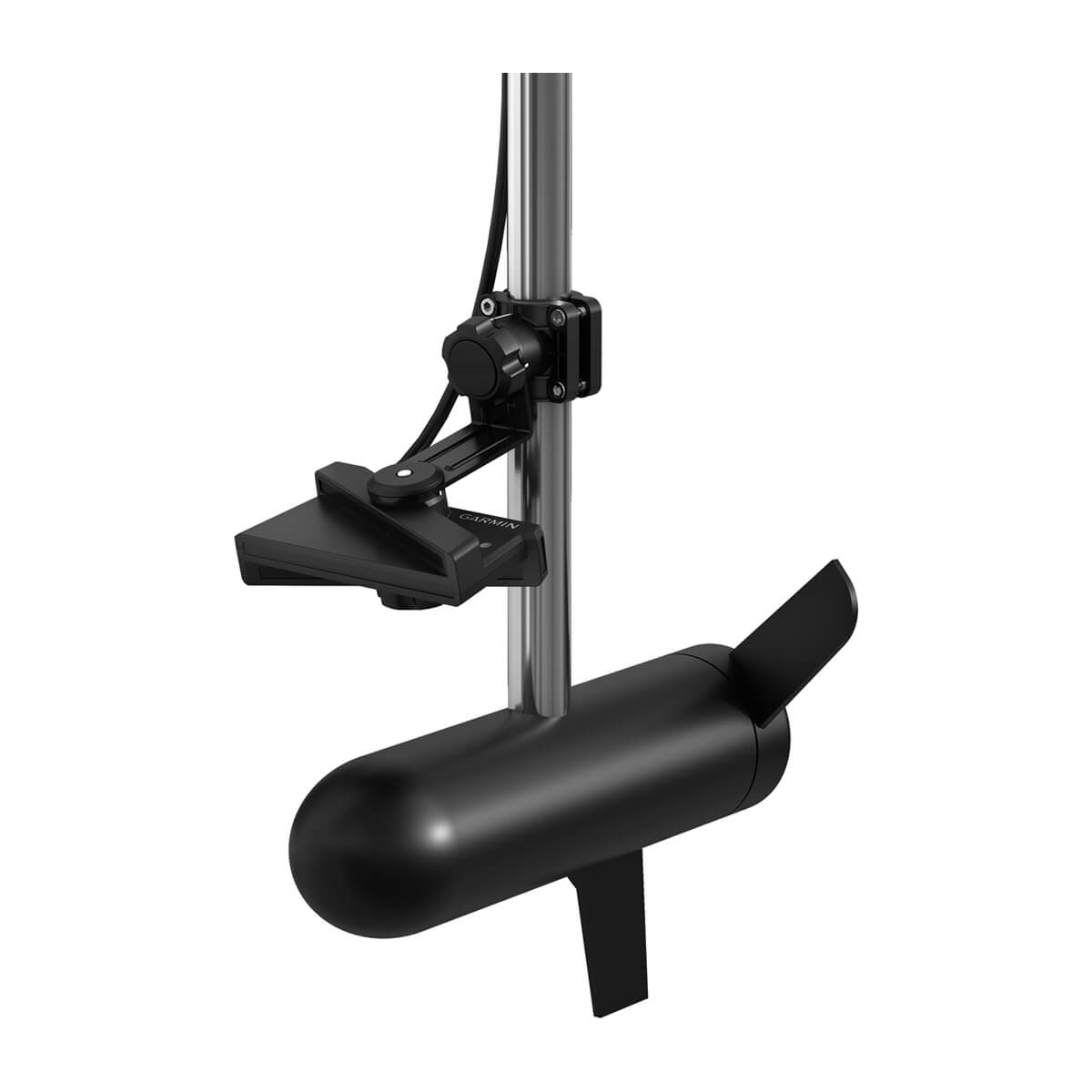

PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
Find the right setup with our online system builder.
Learn More
Powerful. Efficient. Quiet. Force® trolling motor.
See a defined picture on the sunlight-readable ECHOMAP™ Ultra 122sv combo.
Specs
General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension |

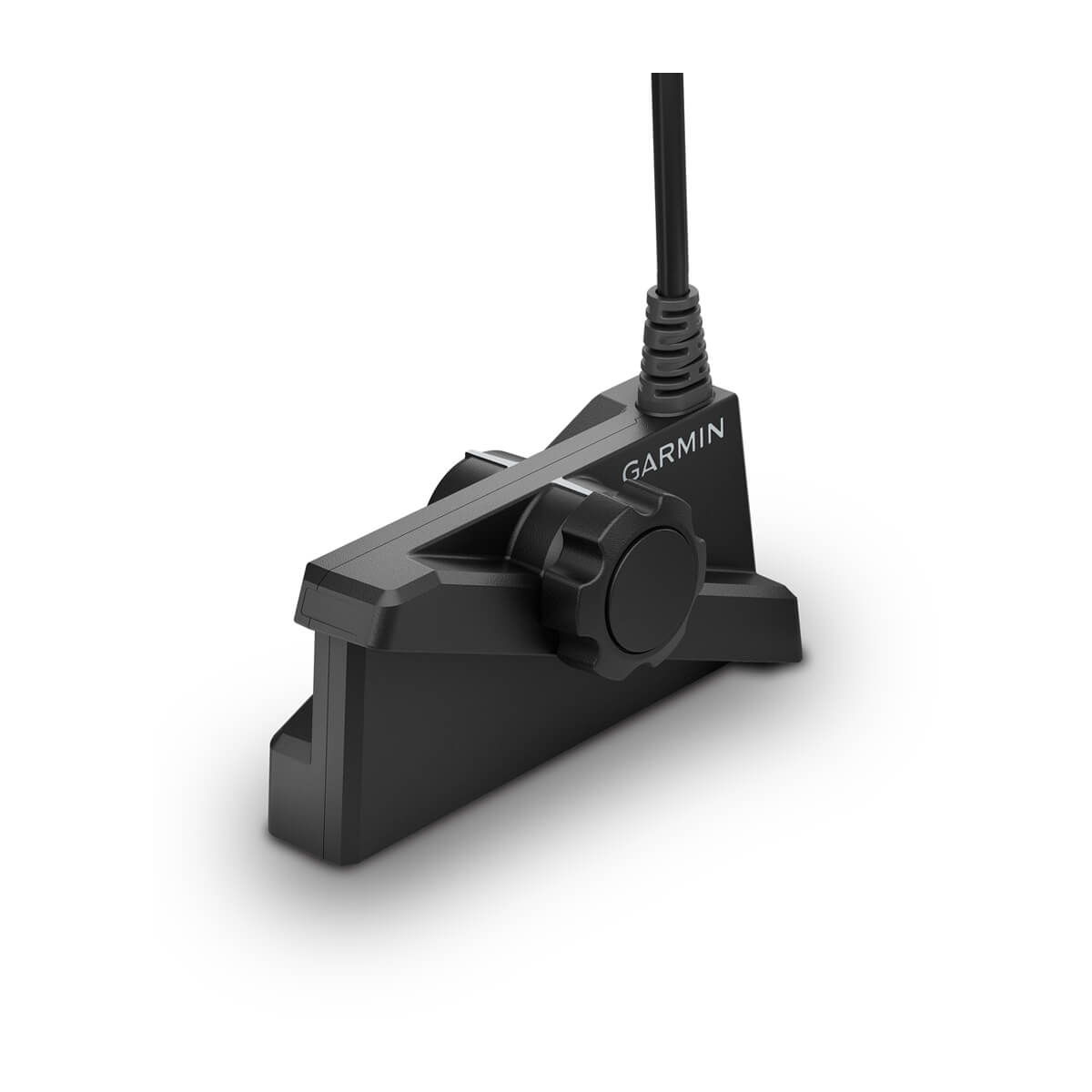

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
| Weight |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Temperature range |
GLS 10 black box: Operating: -15 C to 70 C LiveScope LVS34-IF transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4″ (0.1 m) |
Sonar Features |
|
| Frequency | 530 – 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @ 100′ | 14″ |
| Perspective Mode Mount Included | |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 (small connector) |
|---|---|
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
