Overview

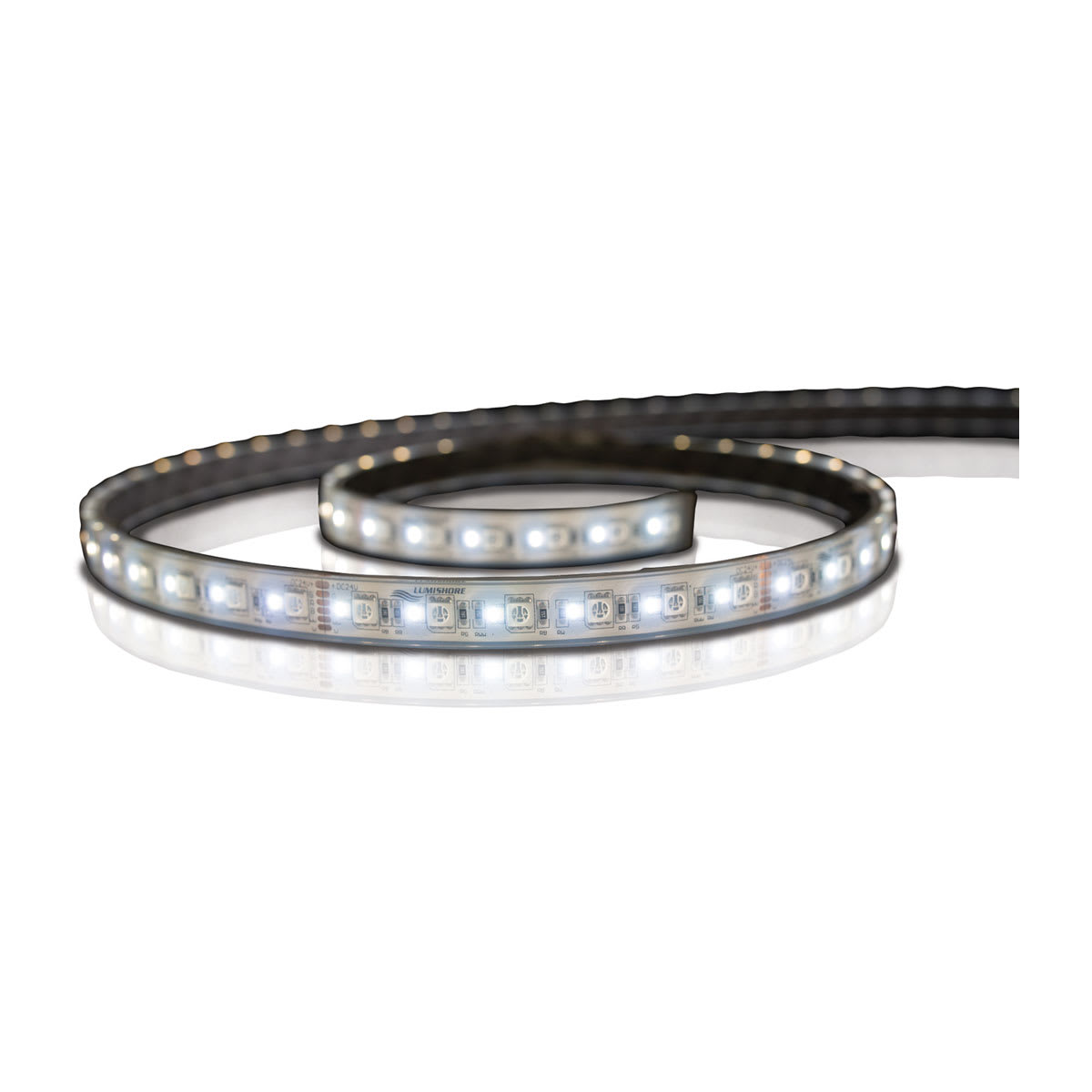

CUT-TO-LENGTH, FULL-COLOR MARINE STRIP LIGHTING
These strip lights deliver CRGBW lighting with tunable white and customizable length. Easily cut every 100 mm, and seal with the included kit for seamless installation. The low-profile design fits seamlessly in gunwales, under furniture or behind panels.
FULL-COLOR CRGBW LIGHTING
CUT AND SEAL TO YOUR NEEDED LENGTH
60 CRGBW LEDS PER METER
CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH1
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
1The momentary switch control requires the Strip Driver; the MFD, Lumishore display and smart device control require the EOS-LUX Command Center
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specs
General |
|
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 60 CRGBW/m |
| Length of strip per strip driver | up to 10 m total |
| Electrical installation | Plug and play |
| Operating voltage | 10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) | 0.6 A/m (via strip driver) |
| Current consumption 24 V (max) | 0.36 A/m (via strip driver) |
| Average power draw | 8.7 W/m |
| Construction | Fully encapsulated and potted |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via Strip Driver) |
|---|---|
| EOS-LUX Command Center | |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Dimensions (depth) | 0.197″ (5 mm) |
|---|---|
| Dimensions (height) | 0.571″ (14.5 mm) |
| Mechanical installation |
Cut to length and seal cut end before installation with silicone (supplied). Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional). |
